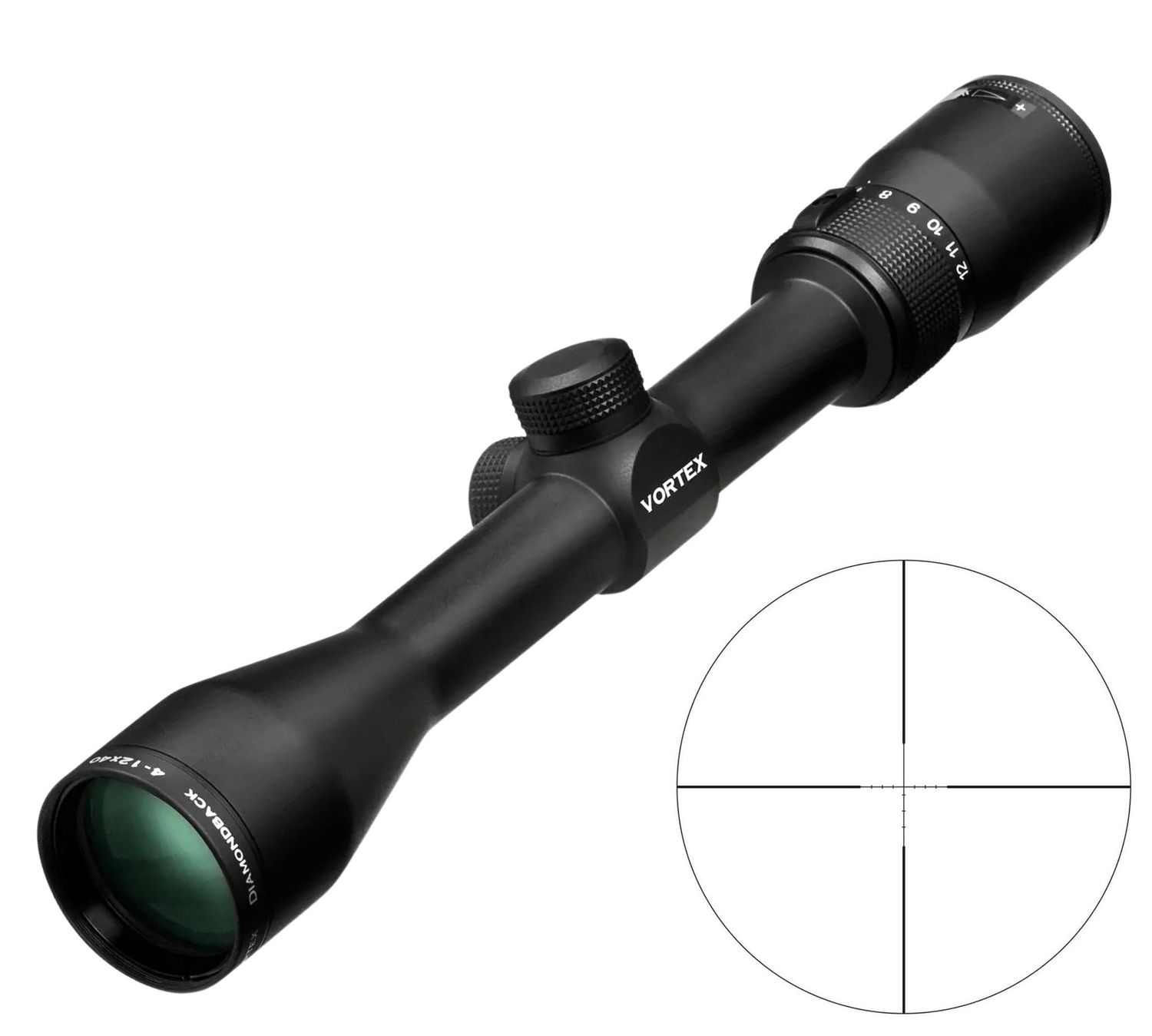

Vortex Diamond Back 4-12x40 BDC Dead-Hold BDC Reticle

Vortex Diamond Back 4-12x40 BDC Dead-Hold BDC Reticle

$539.00
Price incl. GST (15%) $70.30
Show availability at pickup locations

If the product you need is not available at the pickup location, you can choose another delivery method at checkout. Note that in-store prices may differ from online prices.
In-store Pickup
67 Ellis St Brightwater, 7022 Tasman, New Zealand sales@kellycountry.co.nz
In stock
In stock: 1 available
1
Product Details
Brand: Vortex Optics

Vortex DiamondBack Scope | 4-12X40, Dead-Hold BDC Reticle

The Diamondback - loaded with features! First, the solid one-piece aircraft-grade aluminum alloy construction makes the Diamondback riflescope virtually indestructible and highly resistant to magnum recoil. Argon purging puts waterproof and fogproof performance on the agenda, and advanced fully multi-coated optics raise an eyebrow when crystal clear, tack-sharp images appear in the crosshairs. Look for all this and more in a riflescope you'd expect to cost quite a bit more-but doesn't. We can live with that.

OPTICAL FEATURES

  • Fully Multi-Coated | Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.
  • Second Focal Plane | Reticle Scale of reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification.

CONSTRUCTION FEATURES

  • Tube Size | 1 inch diameter tube offers a versatile blend of adjustment, size and weight for a wide variety of shooting applications.
  • Single-Piece Tube | Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.
  • Aircraft-Grade Aluminum | Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
  • Waterproof | O-ring seals prevent moisture, dust and debris from penetrating the binocular for reliable performance in all environments.
  • Fogproof | Argon gas purging prevents internal fogging over a wide range of temperatures.
  • Shockproof | Rugged construction withstands recoil and impact.
  • Hard Anodized Finish | Highly durable hard-coat anodization provides a low-glare matte surface and helps camouflage the shooter's position.
  • Capped Reset Turrets | Allow quick re-indexing of the turret (no tool needed) to zero after sighting in the riflescope. Caps provide external protection for turret.

INTERNAL MECHANISM DESIGN

  • Precision-Glide Erector System | This system ensures the components in the zoom lens mechanism glide smoothly and cleanly through all magnification ranges.

Specifications for Vortex DiamondBack Scope:

  • Magnification: 4-12x
  • Objective Lens Diameter: 40 mm
  • Reticle: Dead-Hold BDC
  • Finish: Black
  • Click Value: 1/4 MOA
  • Field of View: 32.4 - 11.3 ft
  • Tube Size: 1"
  • Eye Relief: 3.1"
  • Elevation Adjustment, Total Capability: 60 MOA
  • Windage Adjustment: 60 MOA
  • Length: 12"
  • Weight: 14.6 oz
Show More
SKU 875874001152
