Description

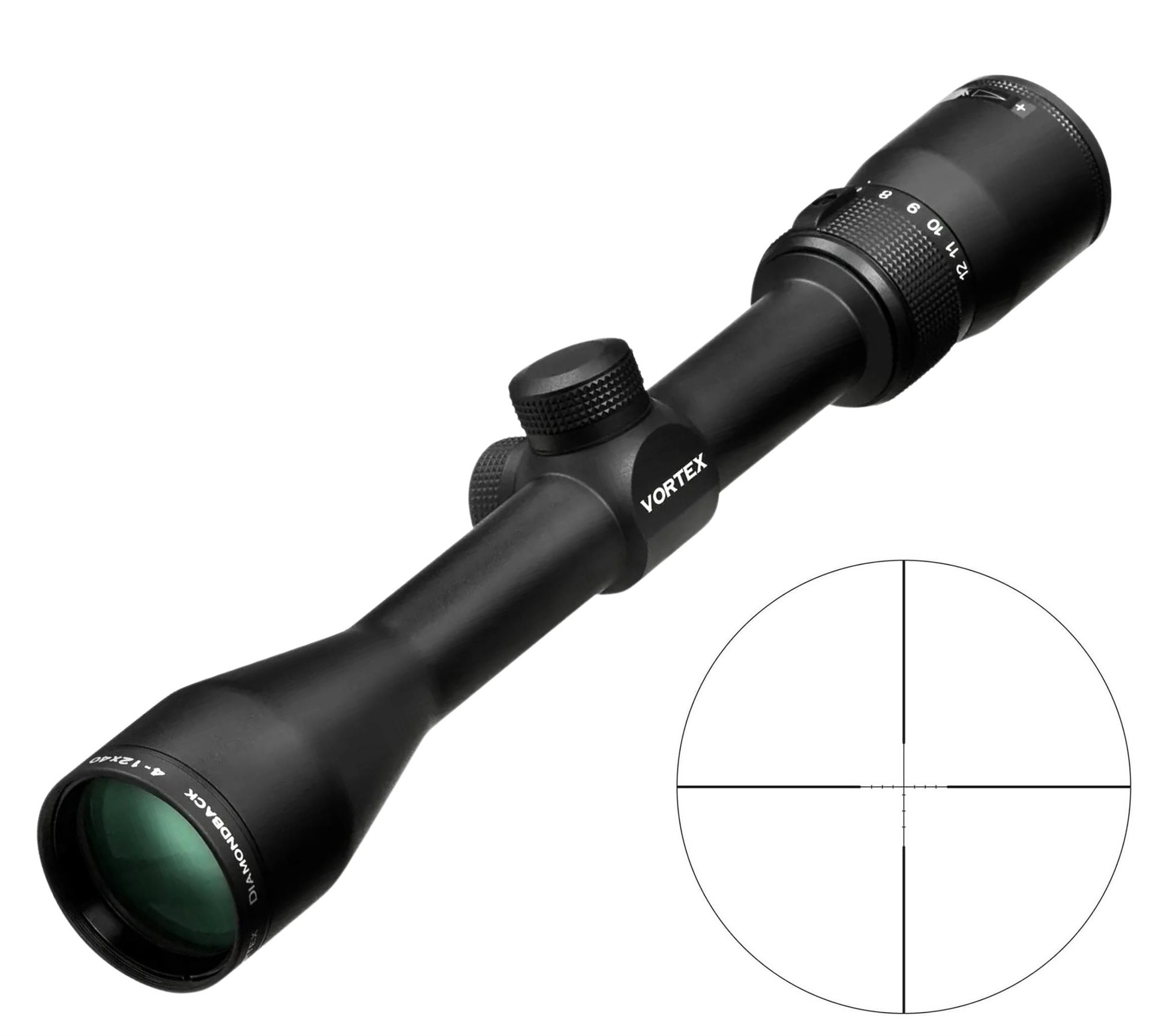

Vortex DiamondBack Scope | 4-12X40, Dead-Hold BDC Reticle
The Diamondback – loaded with features! First, the solid one-piece aircraft-grade aluminum alloy construction makes the Diamondback riflescope virtually indestructible and highly resistant to magnum recoil. Argon purging puts waterproof and fogproof performance on the agenda, and advanced fully multi-coated optics raise an eyebrow when crystal clear, tack-sharp images appear in the crosshairs. Look for all this and more in a riflescope you’d expect to cost quite a bit more-but doesn’t. We can live with that.
OPTICAL FEATURES
- Fully Multi-Coated | Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.
- Second Focal Plane | Reticle Scale of reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification.
CONSTRUCTION FEATURES
- Tube Size | 1 inch diameter tube offers a versatile blend of adjustment, size and weight for a wide variety of shooting applications.
- Single-Piece Tube | Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.
- Aircraft-Grade Aluminum | Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
- Waterproof | O-ring seals prevent moisture, dust and debris from penetrating the binocular for reliable performance in all environments.
- Fogproof | Argon gas purging prevents internal fogging over a wide range of temperatures.
- Shockproof | Rugged construction withstands recoil and impact.
- Hard Anodized Finish | Highly durable hard-coat anodization provides a low-glare matte surface and helps camouflage the shooter’s position.
- Capped Reset Turrets | Allow quick re-indexing of the turret (no tool needed) to zero after sighting in the riflescope. Caps provide external protection for turret.
INTERNAL MECHANISM DESIGN
- Precision-Glide Erector System | This system ensures the components in the zoom lens mechanism glide smoothly and cleanly through all magnification ranges.
Specifications for Vortex DiamondBack Scope:
- Magnification: 4-12x
- Objective Lens Diameter: 40 mm
- Reticle: Dead-Hold BDC
- Finish: Black
- Click Value: 1/4 MOA
- Field of View: 32.4 – 11.3 ft
- Tube Size: 1″
- Eye Relief: 3.1″
- Elevation Adjustment, Total Capability: 60 MOA
- Windage Adjustment: 60 MOA
- Length: 12″
- Weight: 14.6 oz
