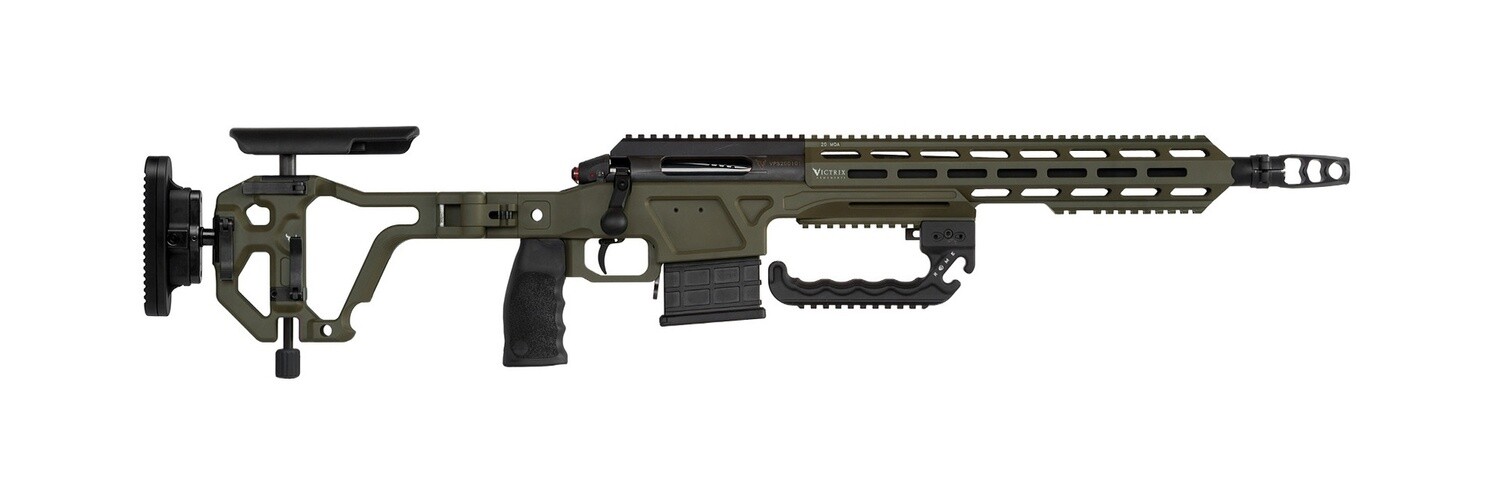

PUGIO V

CALIBER
.308 Win. (1/10)

BARREL LENGTH
16”

WEIGHT
5.7 kg (12.57 lb) with an empty magazine, muzzle brake, barrel length 16” and no scope

DIMENSION
Closed overall length: 714 mm (28.11”)
Open overall length: 960 mm (37.80”)
With muzzle brake and barrel length 16”

BASE RIFLE
Benchmark lapped match-grade button rifled barrel in AISI 416R
Buttstock with horizontal and vertical multiple lever adjustments, a retractable monopod with quick positioning adjustment and fine adjustment, and an insulated cheek piece
Single feed and single stack 7-round magazine
Reversible EVO button folding system
Octagonal elliptic forend with M-LOK® system, a 20 MoA integrated monobloc top rail and an integrated monobloc rail for mounting a bipod according to STANAG 4694/Mil std 1913
Ergonomic and interchangeable zero angle flat top grip for standard AR platform
20 MoA action rail according to STANAG 4694/Mil std 1913
Detachable multifunction carry handle with quick mount:
· with QM (Quick mount) attachment for picatinny rail
· ergonomic handle
· integrated picatinny rail
· hook for rope attachment
· QD (Quick detach) attachments
· tripod attachment with 1/4” – 20 UNC and 3/8” – 16 UNC threads
· front magnetic bit holder for field maintenance
Victrix ProAngle detachable muzzle brake featuring 3 forward-canted chambers
Short action in AISI 630 worked out from billet through milling and turning with finish on electro-discharge and grinding machinery. Bolt with three asymmetric lugs: first lug on top of the cylinder in vertical position (at 12 o’clock), two side lugs arranged at an angle of 105 degree lift, dirt/ice grooves integral
Matt PVD finish on the action and polished PVD finish on the bolt
Victrix Professional Dual-stage trigger, convertible to a single stage trigger, with two positions top safety: standard setting approx. 1000 gr (35.27 oz)
Protective bag for a safe transport
Explorer case for transport with military specifications cod. 7814
User manual and welcome kit

STOCK COLOUR
Every and each component made of light alloy undergoes a 30 micron hard black anodising
CERAKOTE ceramic polymer firearm coatings available in three colours:
Dark Grey
Dark Olive Drab Green
Medium Flat Brown
