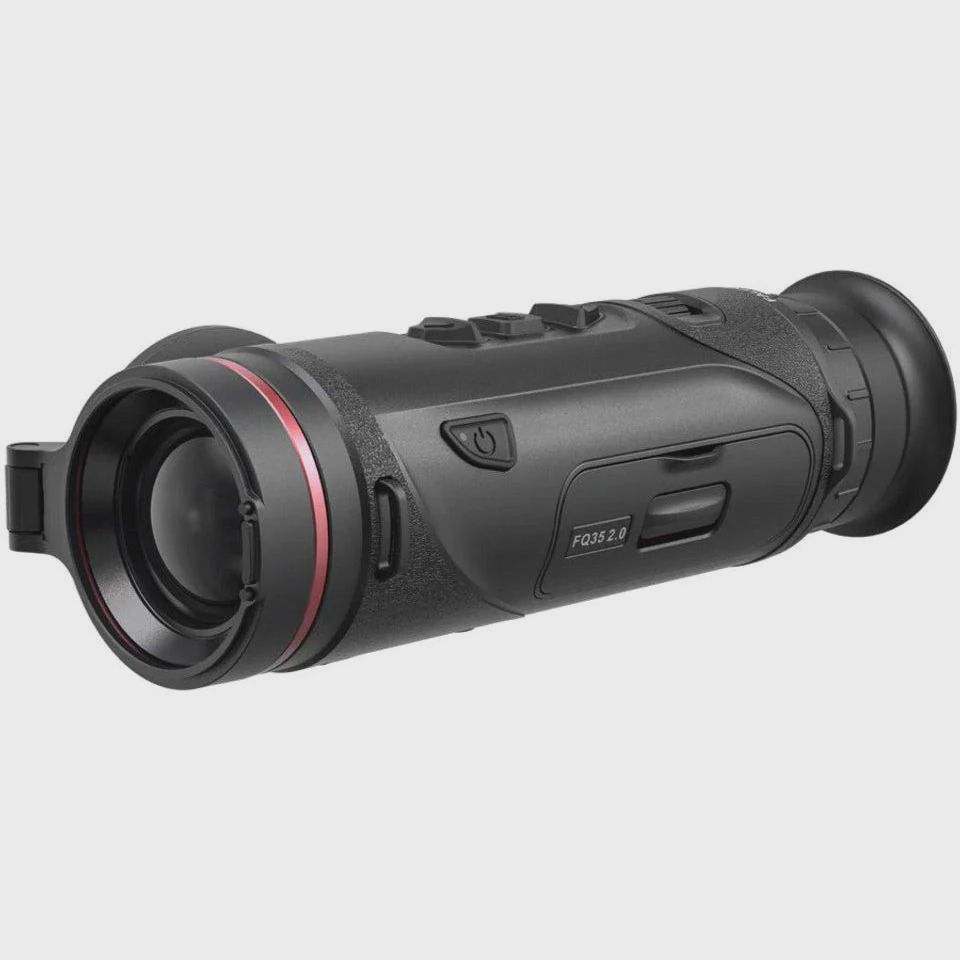

The all-round player thermal monocular with highest ease-of-use, suitable for various hunting scenarios. The FQ35 2.0 is a versatile thermal imaging monocular with a 640x512 detector, 35mm F1.0 lens, and 1.9x base magnification, offering a 22m field of view at 100m and a detection range up to 1800m.
Specification |
|
Thermal Module |
|
Image Sensor |
VOx Uncooled Focal Plane Arrays |
Max. Resolution |
640 × 512 |
Frame Rate |
50 Hz |
Pixel Interval |
12 μm |
Response Waveband |
8 μm to 14 μm |
NETD |
Less than 15 mK (@25°C), F#=1.0 |
Lens (Focal Length) |
35 mm, F1.0 |
Focus Mode |
Rear Focus Wheel |
Min. Focusing Distance |
3.5 m |
Magnification |
1.9 × to 15.2 × (8 ×) |
Field of View(H × V), Degrees / m @100 m |
12.5° × 10.0°/21.9 m × 17.5 m |
Detection Range |
1800 m |
Image Display |
|
Display |
1920 × 1080, 0.49 inch, OLED |
Contrast Adjustment |
Yes |
Brightness Adjustment |
Yes |
Palettes |
Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome |
Exit Pupil |
8 mm |
Eye Relief |
15 mm |
Diopter (Range) |
-5 D to +3 D |
Tone Adjustment |
Cold, Warm |
Zoom Pro |
Yes |
HSIS (HIKMICRO Shutterless Image System) |
Yes |
Image Pro 2.0 |
Yes |
System |
|
Storage |
Built-in Memory Module (64 GB) |
Record Video |
Yes |
Capture Snapshot |
Yes |
Local Album |
Yes |
Standby Mode |
Yes |
PIP |
Yes |
Hotspot |
2.4/5 G WiFi Waveband |
Hot Track |
Yes |
Distance Measurement |
Yes |
Audio Recording |
Yes |
Power Supply |
|
Battery Type |
Replaceable and rechargeable 21700 battery |
Battery Operating Time |
≥6.5 h (@25°C, WiFi, Zoom Pro on) |
Type-C Power Supply |
5 V DC, 2 A |
General |
|
Work Temperature/Humidity |
From -30°C to 55°C (-22°F to 131°F); Humidity: 90% or Less |
Protection Level |
IP67 |
Dimension |
191.3 mm × 70.4 mm × 63.7 mm |
Weight |
485.5 g with Battery |
