Description
A-TEC A-LOCK ADAPTER
Muzzle thread adaptor system for A-Tec Optima and H2 suppressors. It’s a revolution in how you think about attaching your suppressor.
Features:

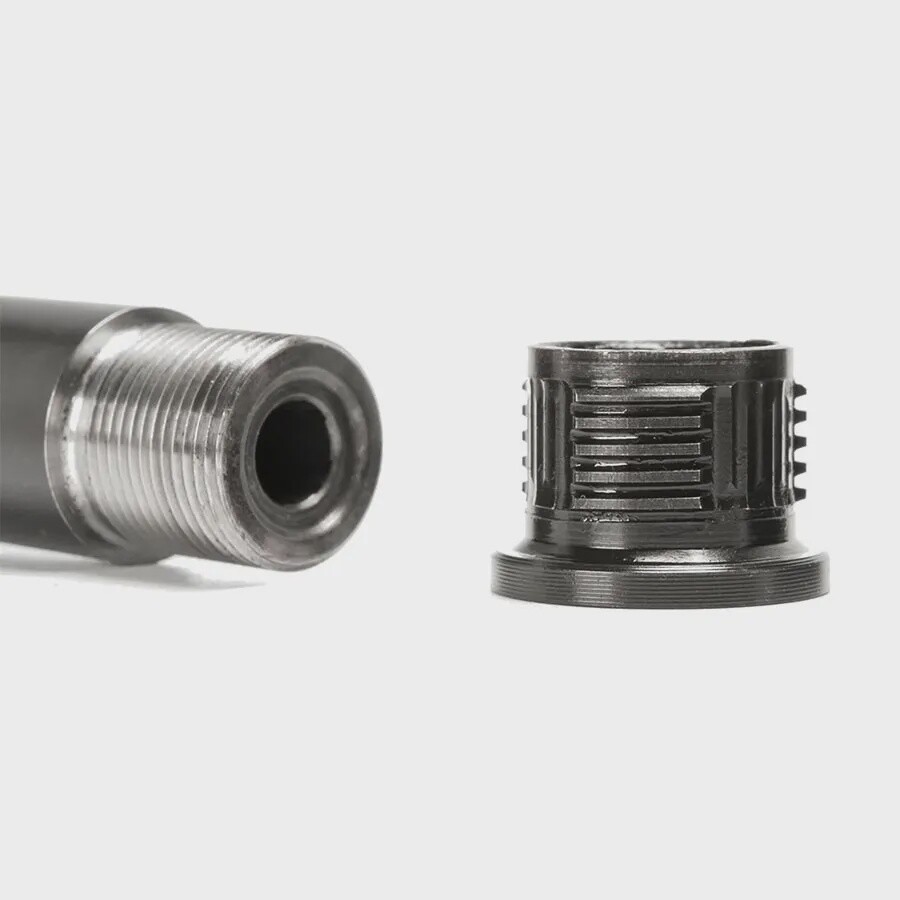

- Adaptor locks on to the muzzle thread of rifle
- This allows the Optima and H2 suppressor to be quick attached and detached in a second with a forceful 1/4 turn.
- This allows a single suppressor to be shared amongst multiple rifles all with different threads. In this case the calibre of the suppressor must be equal or greater than the largest calibre rifle.
- This means the adaptor is on the end of the muzzle, maybe affecting it’s aesthetic if it is a thin barrel.
Instructions:
- Check that the rifle is unloaded and remove the bolt from the action.
- Do not do a test run of attaching the adaptor and suppressor as the A-Lock will get stuck inside the suppressor.
- Degrease(brake clean) the threads on the A-LOCK Mini Adapter and on the barrel.
- Do a dry run of the adaptor onto the threads:
- Maximum length of the thread from muzzle to shoulder should be 15mm.
- Do not tighten at all, it could get stuck.
- Check there is ZERO protrusion of the muzzle crown or threads past the end of the adaptor. Protrusion will prevent the adaptor locking into the suppressor.
- Remove.
- Apply strong and heat resistant thread lock such as Loctite 638 to the muzzle threads on your barrel.Attach and tighten the A-LOCK Mini Adapter to the barrel by hand. Use a rag to get more purchase on the adaptor.
- Wipe off any excess Loctite adhesive, especially on the A-Lock outer surface and threads. Apply grease on the A-LOCK Mini Adapter.
- Attach the suppressor, turning it only in the locking direction so that it does not loosen the adaptor.
- Grasp the suppressor and tighten with moderate torque (6-8 Nm). Do not use extreme force, or the A-LOCK Mini threads may be damaged.
- Let the adhesive cure for 12-24hrs.
- After curing, detach and attach the silencer a few times to check the fitting and alignment.
**Tighten the silencer firmly by hand onto the A-LOCK Mini Adapter prior to shooting and check regularly and between shots. This is good practice for any suppressor on threads, not just A-Lock.**
